Nguồn gốc: | Trung Quốc |
Hàng hiệu: | Huanuo |
Chứng nhận: | CE/FCC/ROHS |
Số mô hình: | HN-361 |
Số lượng đặt hàng tối thiểu: | 1 cái |
---|---|
Giá bán: | Negotiation |
chi tiết đóng gói: | Gói hộp carton chuyên nghiệp |
Delivery Time: | 2~3 working days |
Điều khoản thanh toán: | T/T |
Khả năng cung cấp: | 500 chiếc mỗi tháng |
mã hóa: | AES 128 | đầu vào video: | CVBS+SDI /CVBS+HDMI |
---|---|---|---|
điều chế: | COFDM | băng thông: | 2/2.5/4/8MHz |
mã hóa video: | H.264 | tần số vô tuyến: | 300~860MHz, Bước 1MHz |
Điểm nổi bật: | Long Range COFDM Video Transmitter,H.264 COFDM Video Transmitter,H.264 COFDM Digital Video Transmitter |

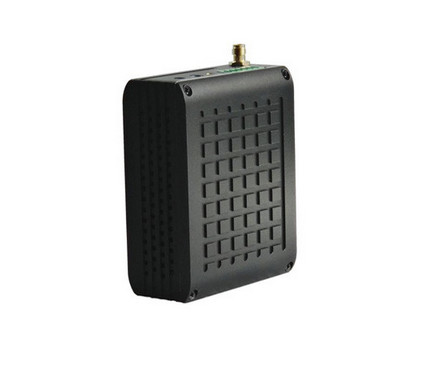

H.264 industrial grade cofdm video transmitter long range UAV video transmitter
Product description
HN-361 This product is our latest Mini HD-SDI wireless video transmission device, using the advanced video preprocessing technologies and efficient video coding algorithms, the device have refined on the improve of coding efficiency,reduce the coding delay,algorithm optimization,anti-ber and improve the quality of video,it can be used the lowest rate to achieve the best image compression.
Features
1. Wide frequency response and low noise design.
2. Low power consumption linear design, improve transmit power and reduce nonlinear distortion.
3. Low group delay, suitable for digital signal transmission.
4. ALC maintains constant power output.
5. Proved by standing wave ratio.
6. Applied to single-channel or multi-channel UHF digital TV transmission system.
7. Support broadband frequency forwarding of HFC, AML, MMDS digital TV signals.
8. The wireless network coverage of digital TV can be realized at low cost.
9. Provide automatic and manual switching backup system.
10. Built-in shunt series power lightning arrester to prevent lightning surge and transient
11. Local monitoring.
12. Wireless remote monitoring (optional).
Application
This product is widely used in high quality and high standard requirements of aerial photography,News, sports events, hidden investigation, video surveillance,real-time wireless video transmission and other field
Technical Characteristics
Model | HN-361 |
Voltage | DC12V |
Current | 2100mA |
Video input | AV:3.5mm port, SD analog video signal |
Camera:2.5mm port,external SD camera | |
SDI:support HD1080P,720P,576,480,with audio de-embedding function | |
Radio Frequency | 1250MHz-1450MHz,adjustable,Stepping 1MHz |
Output power | 20-33dBm, adjustable,Stepping 1dB |
Bandwidth | 2/2.5/4/8MHz |
Encryption | AES |
FFC | 1/2,2/3,3/4,7/8 |
Guard Interval | 1/32,1/16,1/8,1/4 |
Encoding | H.264 |
Modulation | COFDM,QPSK |
Control Mode | LCD control panel to seting |
Operating temperature | -10℃ ~ 75℃ |
Dimensions | 90mm*70mm*32mm |
Weight | 228g |
